Raise touch kiosks

Touch kiosks built to a higher standard

Raise kiosks bring a level of finish and durability that typical kiosk brands don't match: precise metalwork, tempered glass and commercial-grade displays that still look new after years of use. Every unit is a full Windows computer, backed by a 3-year warranty on parts and defects.

Where they work best

VX series vertical kiosks

Six sizes from 43" to 86", all with the same powerful default configuration.

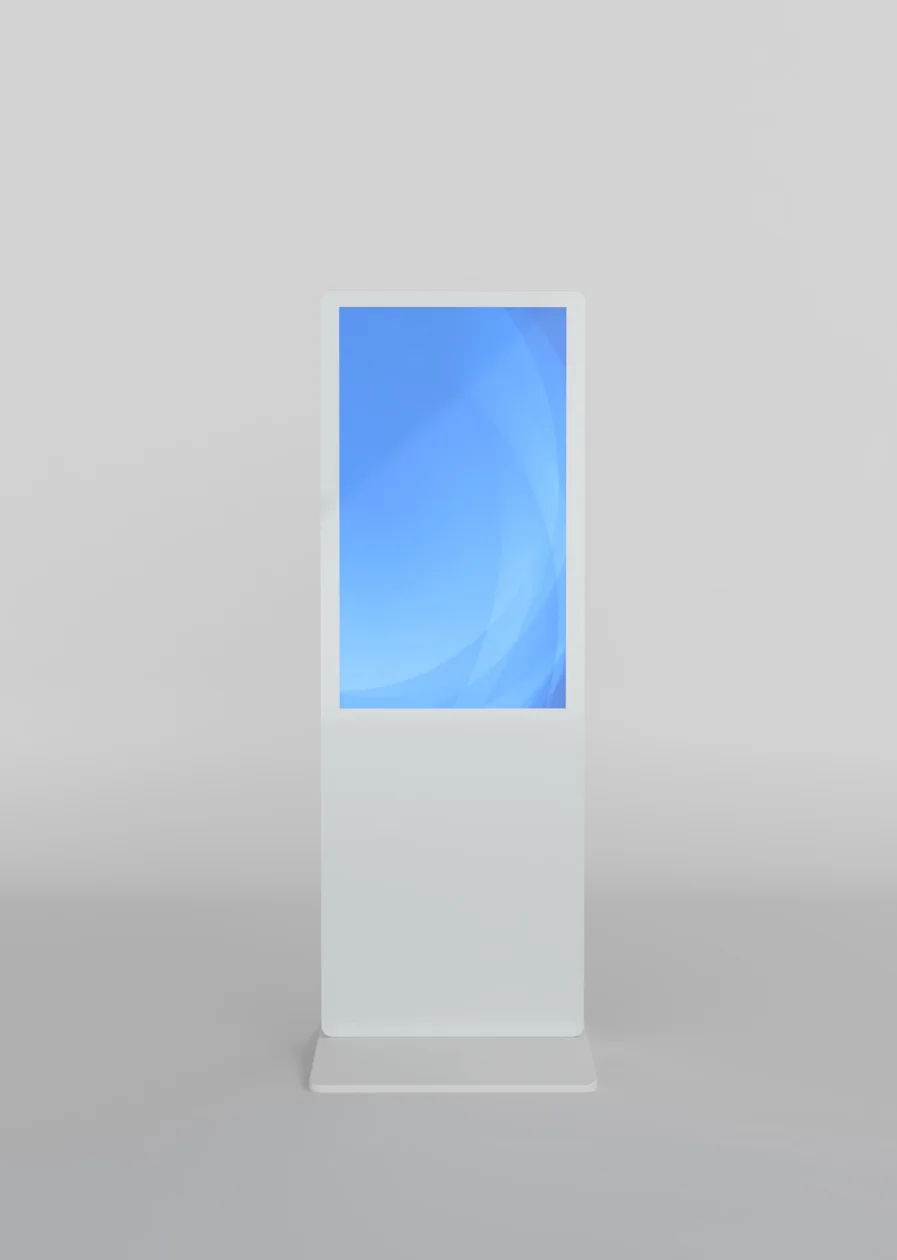

Raise VX43 43" vertical kiosk

VX43 · 43" vertical kiosk

Perfect for smaller rooms, offices, trade shows and public spaces. A powerful built-in computer keeps it running smoothly.

Size (H × W × base)
179 × 61 × 46 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

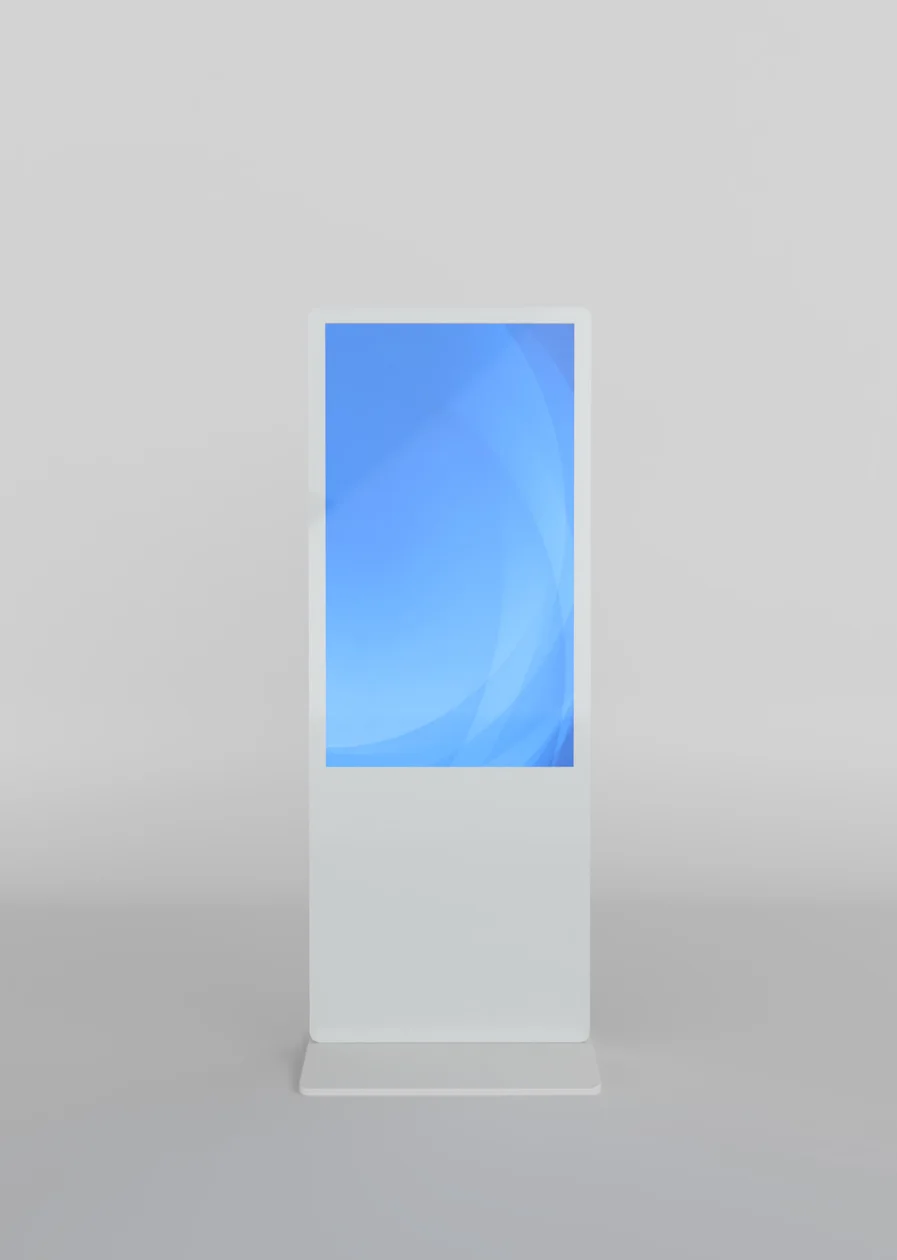

Raise VX49 49" vertical kiosk

VX49 · 49" vertical kiosk

A versatile size for hotel lobbies, airports, trade shows and presentations. The 49" screen suits most applications.

Size (H × W × base)
185 × 69 × 46 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

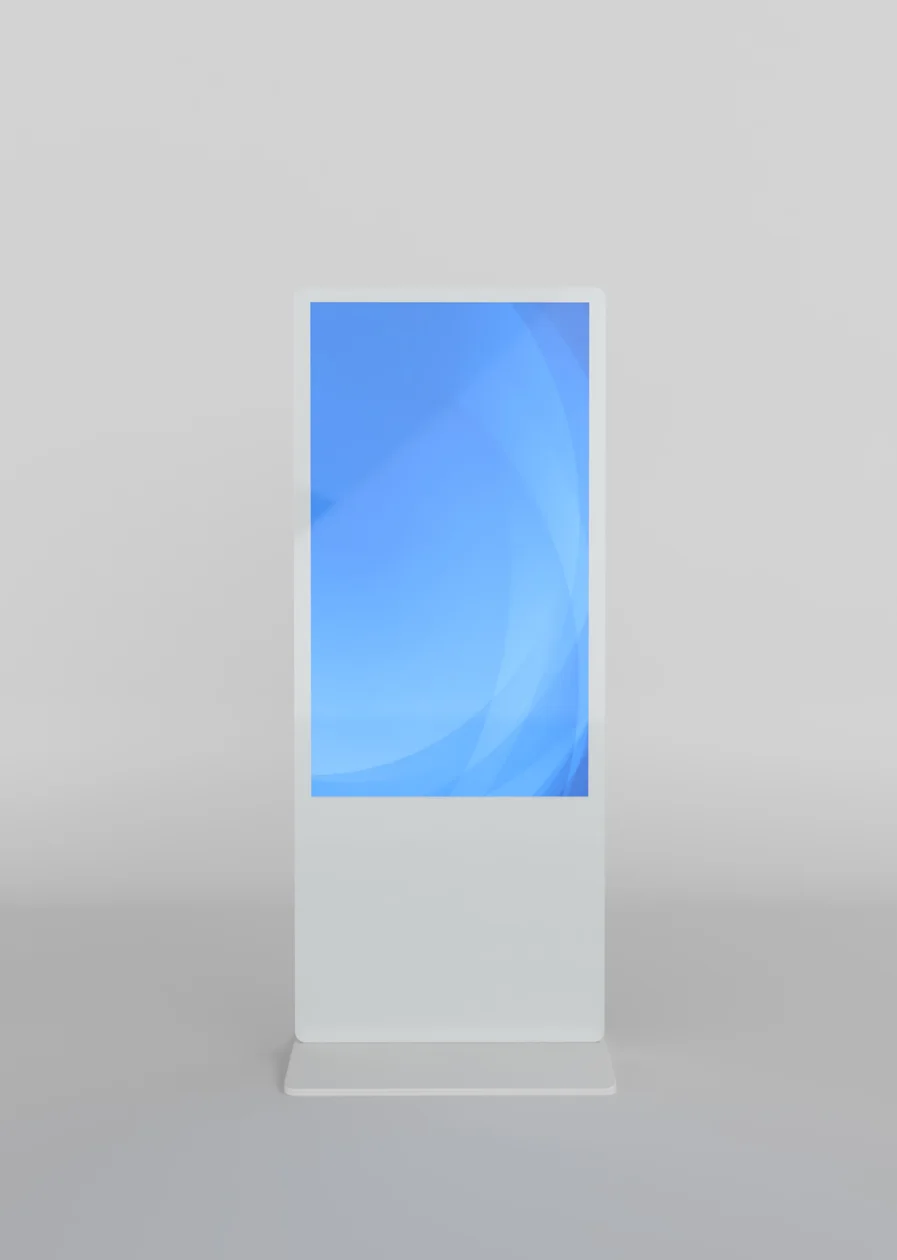

Raise VX55 55" vertical kiosk

VX55 · 55" vertical kiosk

An excellent large-format choice, recommended for airports, shopping malls and trade shows.

Size (H × W × base)
190 × 76 × 46 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

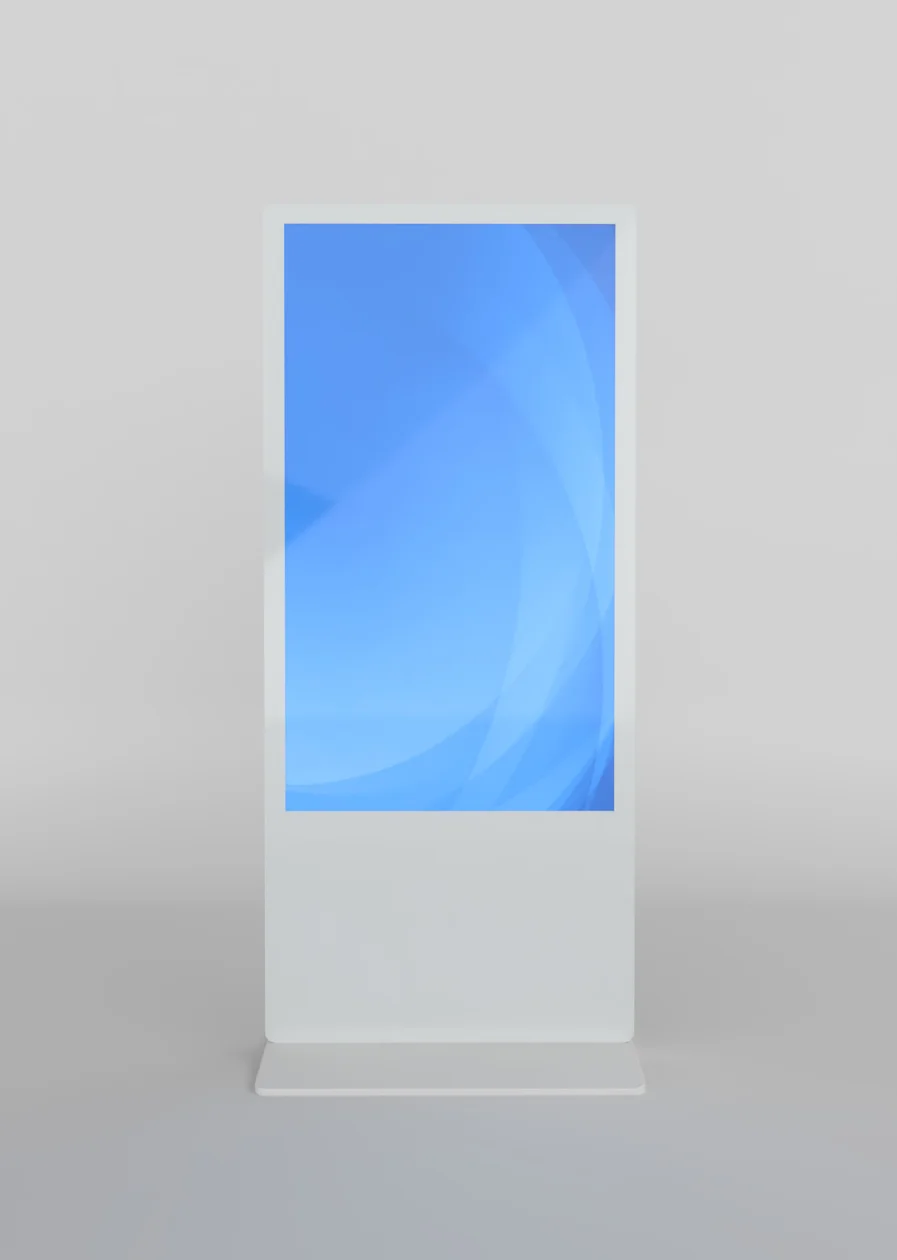

Raise VX65 65" vertical kiosk

VX65 · 65" vertical kiosk

The largest model with a framed screen, well suited to big spaces such as airports, malls and stadiums.

Size (H × W × base)
201 × 90 × 60 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

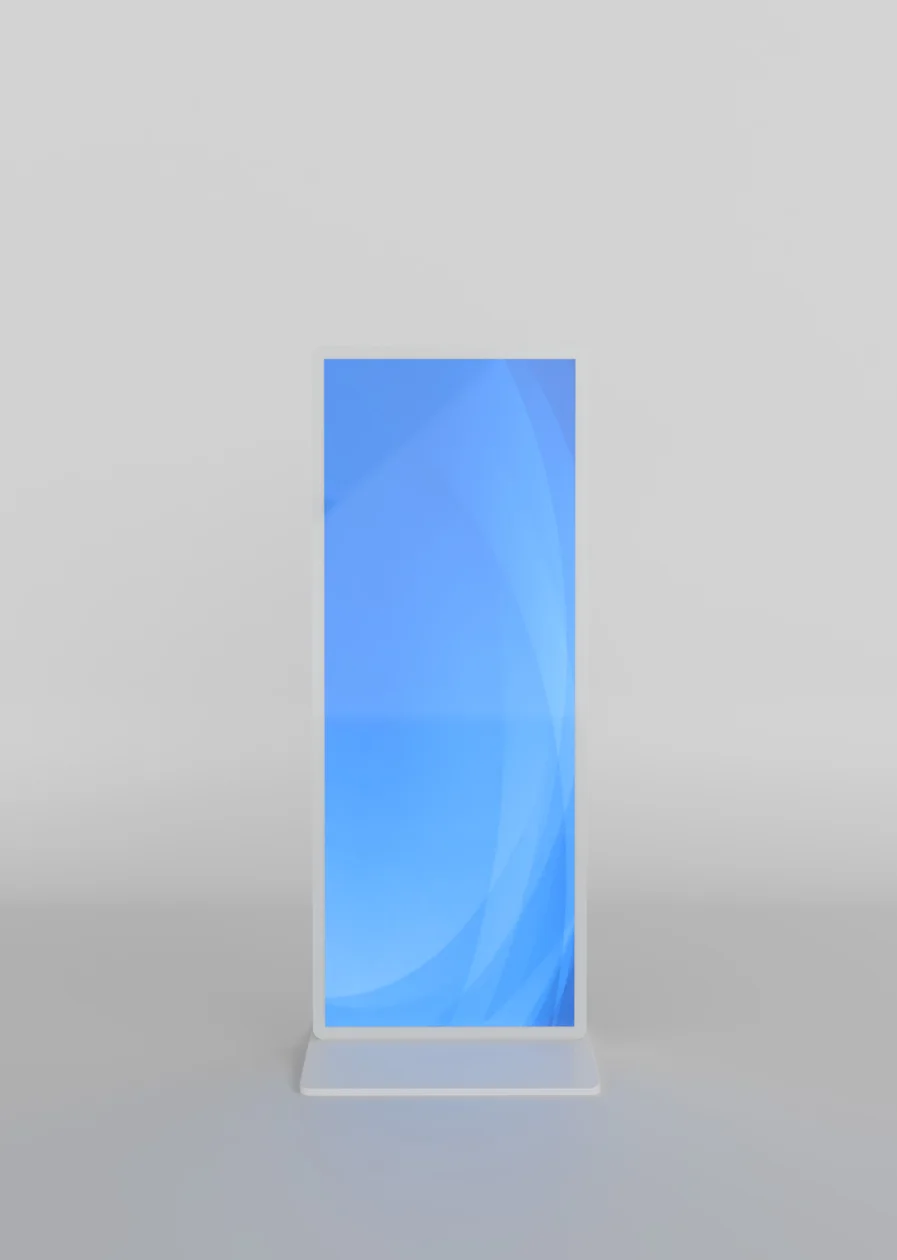

Raise VX75 75" vertical kiosk

VX75 · 75" vertical kiosk

A full-screen kiosk that stands out for advertising, retail displays and trade shows.

Size (H × W × base)
176 × 68 × 50 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

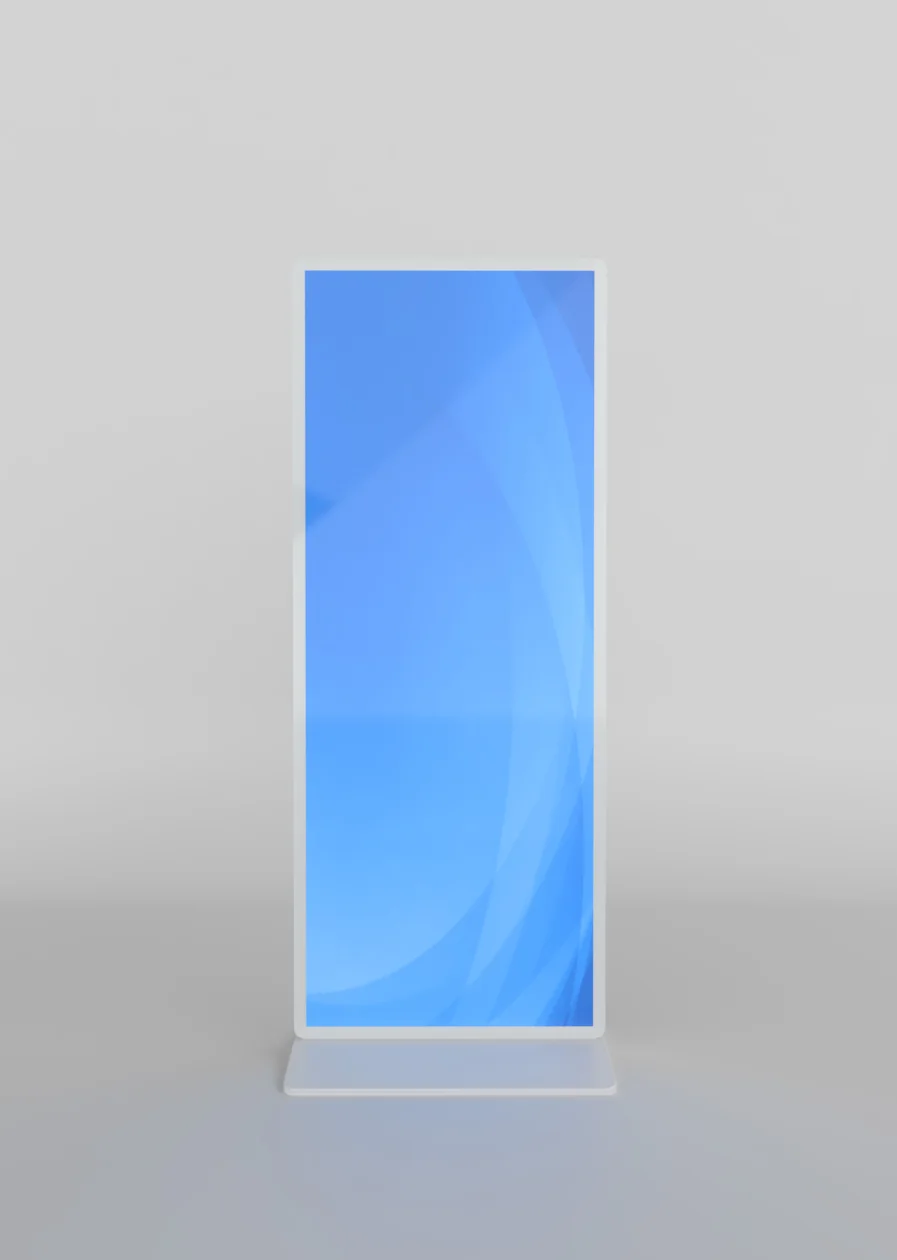

Raise VX86 86" vertical kiosk

VX86 · 86" vertical kiosk

The largest screen in the VX series, built for large venues, retail advertising, stadiums and major trade shows.

Size (H × W × base)
202 × 77 × 50 cm
Default configuration
Windows 11 · 4K · Intel i5 12th gen · 16 GB RAM · 240 GB SSD · 10-pt capacitive touch · Wi-Fi · 450 nits

Options & specifications

Every VX kiosk can be configured to fit your project.

Raise

Raise is our own line of touch kiosks. We chose every part for finish and durability: a solid metal casing, tempered glass, commercial-grade screens built to run all day, and clean, seamless lines that look premium in any lobby or booth.

Need it on the road?

Ask about our roadcase options for touring, trade shows and rentals.

Operating system
Windows 11 (Android on request)
Resolution
4K UHD 3840 × 2160
Processor
Intel i3, i5, i7
Touch technology
10-pt capacitive, 10-pt infrared, or no touch
Memory
8–32 GB
Storage
32–240 GB SSD
Brightness
350–1500 nits
Casing
Metal, tempered glass
Colours
White, black, silver trim
Response time
8 ms
Viewing angles
178° H/V
Colours / contrast
16.7M colours / 1000:1
Wi-Fi
802.11 b/g/n
Power
AC 110–240 V, 50–60 Hz
Operating temperature
0 °C – 40 °C
Backlight life
50,000 hours
Optional accessories
UPC scanner, printer, other USB devices
Warranty
3 years, defects and parts

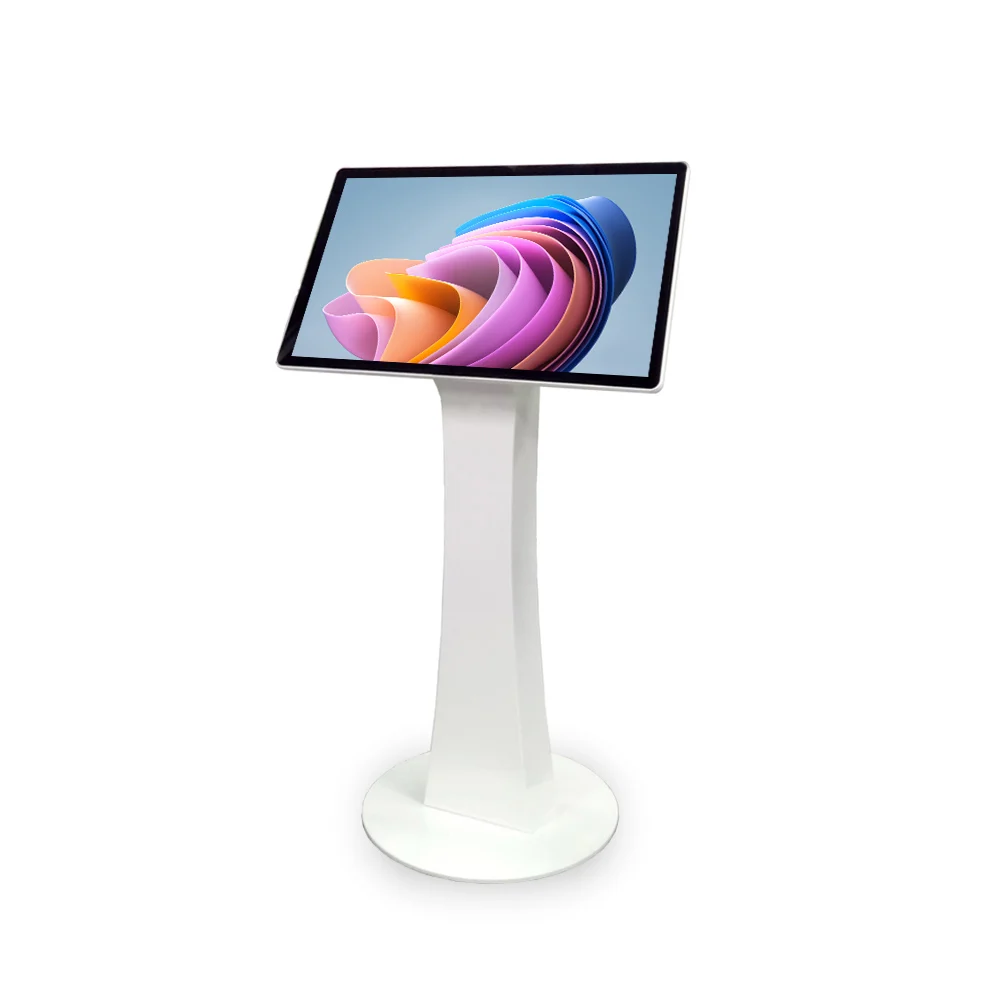

Raise STX STX compact touch kiosk

27" model shown

STX compact touch kiosk

Pedestal kiosk with an angled screen, from 15.6" to 32"

A standalone Windows touch computer on a slim pedestal, ideal for presentations, retail, check-in, ordering and other self-service uses. Add a UPC scanner or a printer for point-of-sale and ticketing.

Screen sizes
15.6", 18.5", 21.5", 27", 32"
Touch technology
10-pt capacitive multi-touch
Resolution
1920 × 1080 or 3840 × 2160 (16:9)
Operating system
Windows 10/11
Processor
Intel i3, i5, i7
Memory
8, 16 or 32 GB
Storage
128, 240 or 512 GB
Brightness
250 nits
Ports
USB 2.0 × 2, RJ45 × 1, HDMI out × 1
Casing
Metal, tempered glass
Colours
White, black
Viewing angles
178° H/V
Wi-Fi
802.11 b/g/n
Power
AC 110–240 V, 50–60 Hz
Backlight life
50,000 hours
Optional accessories
UPC scanner, printer
Warranty
3 years, defects and parts
